Volume a. c., volumetric flow a. c., gas velocity, volume s. c. (*), volume flow under s.c. (*) (*) additional function included with integrated volume correction

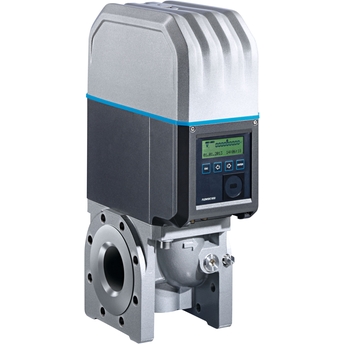

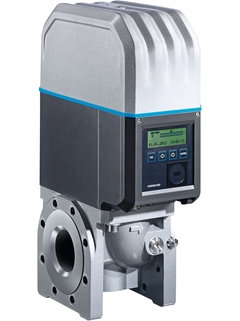

State-of-the-art technology for maximum measurement accuracy: The new FLOWSIC550 ultrasonic compact gas flowmeter ensures highly accurate billing of low volume flows in high-pressure networks – a perfect complement to the FLOWSIC500. It is overload-proof, accurate and is monitored by an intelligent diagnostics system. FLOWSIC550 can be easily integrated into existing measuring stations. When used in transfer and measuring stations, FLOWSIC550 ensures a continuous and blockage-free gas supply.
Gas Measurement of low volume applications at high pressures
Custody transfer: gas distribution, storage, and transmission systems
Town border stations and city gate stations
Device properties:
Diagnostics and permanent operational self-monitoring
Durable and reliable without moving parts
Compact meter installations
Integrated volume correction
Battery or intrinsically safe power supply
Bluetooth Low Energy (BLE)
Benefícios
Ultimate measurement certainty and safety of continuous gas supply
Simple installation, replacement of turbine gas meters
Reduction of installation costs due to integrated volume correction
Easy Commissioning and data reading via FLOWgateTM (PC and App)
Minimal operating costs due to being nearly maintenance-free
Reliable even when the gas flow fluctuates (on/off applications)
A Schluchseewerk AG desejava registrar e otimizar a eficiência de suas turbinas na usina hidrelétrica reversível em Wehr. A Endress+Hauser oferece a solução ideal com seu medidor de vazão ultrassônico tipo clamp-on.
A GPsol, juntamente com a Endress+Hauser, desenvolveu um sistema que mede individualmente cada componente dos poços de extração e fornece o máximo de informações possível sobre a vazão atual.
Volume a. c., volumetric flow a. c., gas velocity, volume s. c. (*), volume flow under s.c. (*) (*) additional function included with integrated volume correction
Measuring Medium
Natural gas (dry, odorized)
Repeatability
≤ 0.1 %
Accuracy
Qmin up to 0.1 Qmax ≤ ± 1 %
0.1 Qmax up to Qmax ≤ ± 0.5 % Accuracy class 1; maximum allowed error limits
Qmin up to 0.1 Qmax ≤ ± 2 %
0.1 Qmax up to Qmax ≤ ± 1 % After high pressure flow calibration: ±0.2 % at test pressure; otherwise ±0.5 %
Medium temperature range
-25 °C ... +60 °C Optional: –40 °C ... +70 °C
(–13 °F ... +140 °F Optional: –40 °F ... +158 °F)
Operating pressure range
PN16 (EN 1092-1): 0 bar (g) ... 16 bar (g) / 0 psi(g) ... 232 psi(g)
Class 150 (ASME B16.5): 0 bar (g) ... 20 bar (g) / 0 psi(g) ... 290 psi(g)
Nominal pipe size
DN 50 (2") … DN 150 (6")
Metrological approvals and certificates
MID: 2014/32/EU OIML R 137-1&2:2012 EN 12405: 2010 (for integrated flow conversion)
Hazardous area approvals
IECEx Ex ia [ia] IIC T4 Gb, Ex op is IIC T4 Gb
ATEX II 2G Ex ia [ia] IIC T4 Gb, II 2G Ex op is IIC T4 Gb
NEC/CEC (US/CA) CSA: I.S. for Class 1 Division 1 Groups C and D T4; Ex/AEx ia IIB T4 Ga
