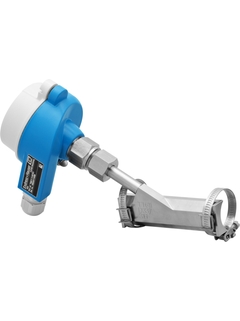

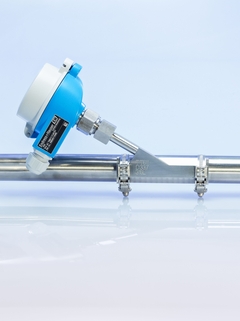

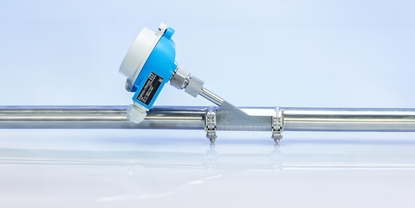

Version with aluminium terminal head TA30A, 20° angle, DN25, 1 ", outside pipe ⌀ 33.7 mm
Especificações resumidas
Accuracy
depending on application Class AA acc. to IEC 60751 Class A acc. to IEC 60751 Class B acc. to IEC 60751 Class special or standard acc. to ASTM E230 Class 1 or 2 acc. to IEC 60584-2
The non-invasive thermometer iTHERM SurfaceLine TM611 is used across all industries to measure temperature without the risk of leakage and process disruption. The device is safe and easy to install and provides the same accuracy and response time as invasive temperature measurement. A specially designed thermal coupling element provides ideal thermal conductivity to the sensor and reduces ambient influences, resulting in superior measurement performance even compared to electronic compensation.
Can be used universally in all industries
Ideal for demanding process conditions such as high flow velocities, high process pressures, highly viscous or corrosive media, abrasion, pigging or small pipe diameters

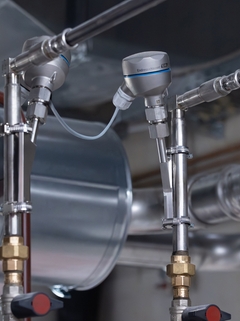

Perfect for subsequent installation for measurements in existing facilities for energy and safety monitoring
Benefícios
Measurement accuracy and response time comparable with invasive measurements
No process opening required, no leakage risk
Increased safety for personnel, plant and the environment
User-friendly from product selection to installation and maintenance
Significant cost savings: shorter development and project planning times, reduced expenses for installation, certification and inspections as well as no costs for thermowells, nozzles and flanges, weld seam inspections and pipe extensions.

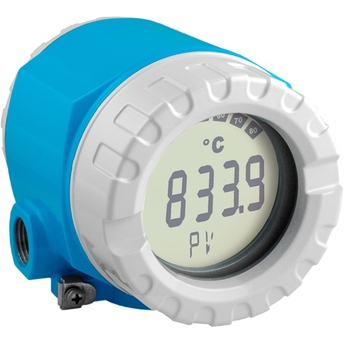

iTEMP temperature transmitter with all standard communication protocols and optional Bluetooth® connectivity
International certification: e.g. explosion protection according to ATEX, IECEx, CSA and NEPSI; functional safety (SIL)
O processo Ziegler-Natta utiliza produtos químicos perigosos, como o tetracloreto de titânio. A medição precisa da temperatura é crucial para evitar reações descontroladas e garantir a segurança e a eficiência.
Para enfrentar os desafios do monitoramento de temperatura em processos tão críticos, foi desenvolvido um design de poço para termoelemento que responde às mudanças no processo até cinco vezes mais rápido do que as versões padrão.
A temperatura interna dos reatores durante a reação de enxofre deve ser monitorada continuamente e precisamente para evitar paralisações na planta industrial e otimizar o consumo de energia.

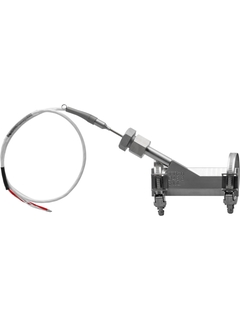

non-invasive thermometer cable probe or modular thermometer suitable for high process pressures surface mounting
Thermowell / protection tube
without (not intended to use with thermowell)
Insert / probe
non exchangeable RTD or TC insert
Outer diameter protection tube / Insert

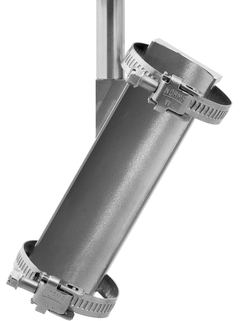

Geometry of coupling element is designed according to diameter of process piping
Process connection
surface mounting
Operating temperature range
-196 °C…400 °C (-320,8 °F...752 °F)
Accuracy
depending on application Class AA acc. to IEC 60751 Class A acc. to IEC 60751 Class B acc. to IEC 60751 Class special or standard acc. to ASTM E230 Class 1 or 2 acc. to IEC 60584-2
WirelessHART communication interface Transmission rate: Nominal 250 kBits/s Operating frequency: 2.4 GHz (ISM band) Transmission range under reference conditions: Outdoor 250 m, indoor 50 m
Active barrier, 1 channel for 4 to 20 mA, HART® transparent with 24 to 230 V AC/DC as well as active/passive input and output, optionally with SIL and Ex
WirelessHART communication interface Transmission rate: Nominal 250 kBits/s Operating frequency: 2.4 GHz (ISM band) Transmission range under reference conditions: Outdoor 250 m, indoor 50 m
Active barrier, 1 channel for 4 to 20 mA, HART® transparent with 24 to 230 V AC/DC as well as active/passive input and output, optionally with SIL and Ex
